10.1Inch High Resolution 1920*1200 PCAP Touch Monitor JB101MT-M450 for Industry Application
Parameters
| LCD Panel Parameters | Panel Size | 10.1inch |
| Aspect Ratio | 16:10 | |
| Backlight | LED | |
| Pixels | 0.11292×0.11292 mm | |
| Active Area | Horizon:216.806mm Vertical:135.504 | |
| Resolution | 1920*1200@ 60 Hz | |
| Response Time | 30ms | |
| Color | 16.7 million | |
| Brightness | 450 cd/m2 | |
| Contrast Ratio | 900:1 | |
| View Angel | 80/80/80/80 (Typ.)(CR≥10) | |
| Touch Panel Parameters | Touch Type | PCAP |
| Touch Cover Thickness | 2.4mm | |
| Transparrent Rate | 87% | |
| Hardness | 6H | |
| Touch Points | 10 | |
| Response Time | ≤10 ms | |
| Tools | Finger / Pen | |
| Touch Life Span | ≥5000 Million | |
| Touch Accuracy | ＜2% | |
| Single Point Operate System | Windows XP,Linux | |
| Multi Point Operate System | Windows7/8/10,Android | |

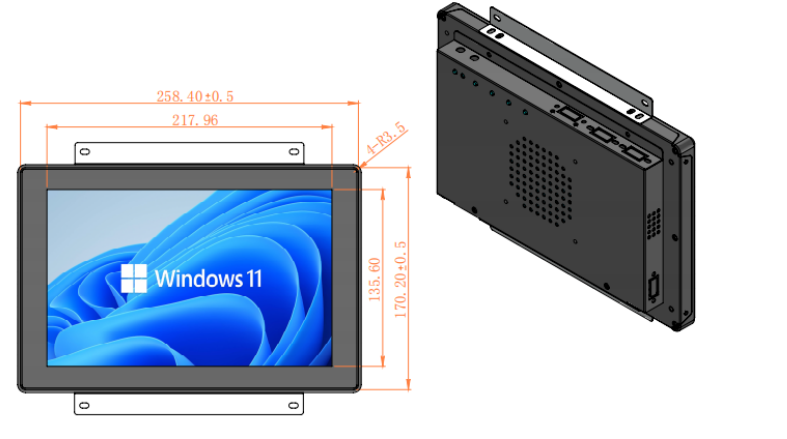

| PCAP Monitor Parameters | Outline Dimension | 262.77mm ×174.77mm ×37.5mm |
| Weight | TBA | |
| Video Input Format | RGB Analog / Digital | |
| Input Interface | VGA+HDMI / DC12V / USB2.0 | |
| OSD | Power,Menu,Up,Automobile,Down | |
| Power Supply Input | DC 12V±5% | |
| Power | Max:6w；Stand by: 3w; Power off:2w | |
| Mount | Side / VESA 75mm&75mm | |
Accessories | Singal cable | VGA D-SUB 15pin 1.5M |
| USB cable | 1.8 M | |
| Adaptor | 12V/3.0A,105mmx50mmx32mm,1.1M | |
| Certificate | 3C CE FCC ROHS | |
| Working Temp. | : 0℃-50℃； : | |
| Humidity | Working: 20%-80%; Storage: 10%-90% | |
| Operate at altitude | ＜3000M | |
| Warranty | 1 year | |
